UPS Solutions
One premium product page bringing together UPS Generator diesel sets, gas gensets, mobile power, clean energy, lighting towers and technical catalogue data in one organized corporate experience.
Product Index

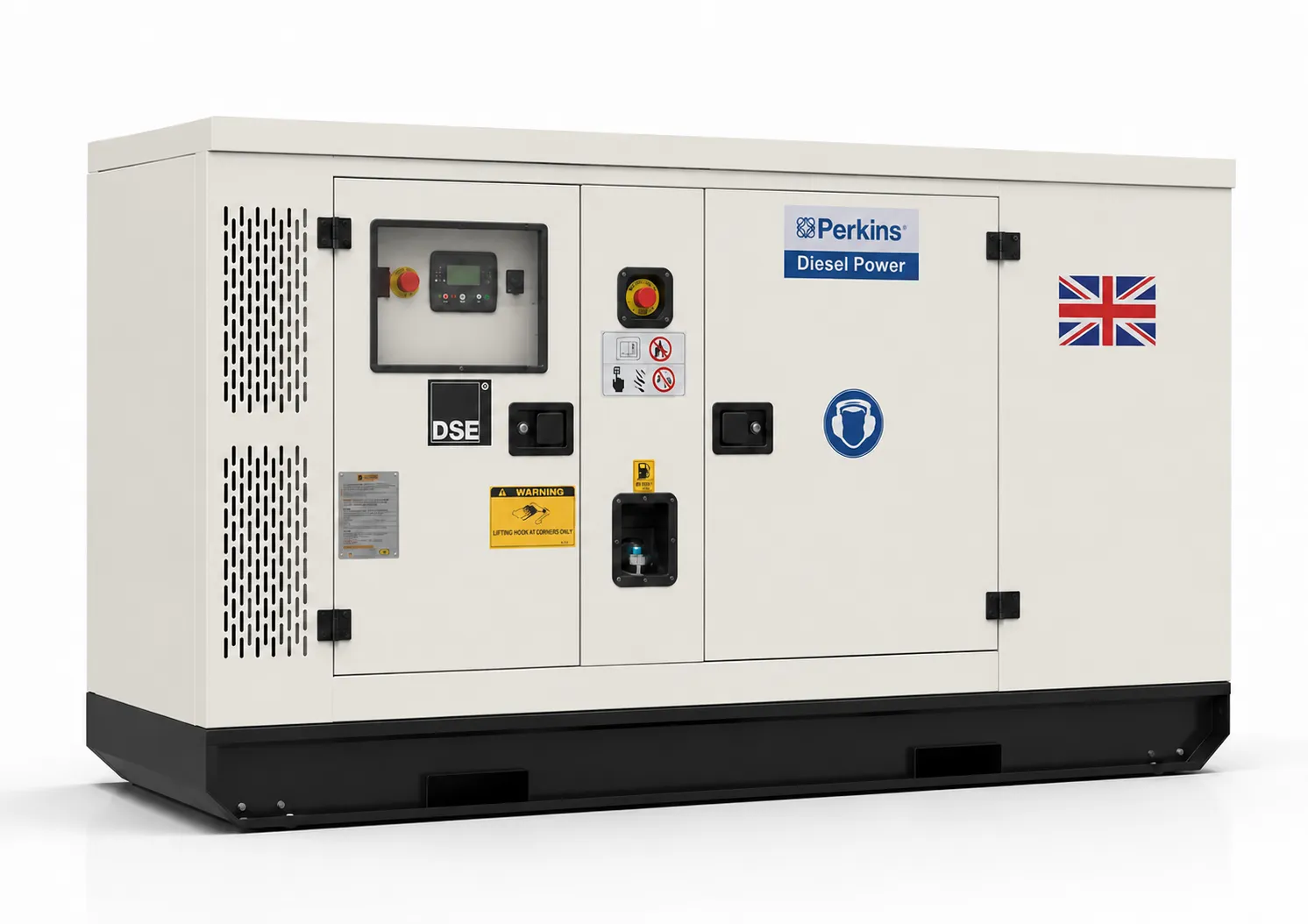

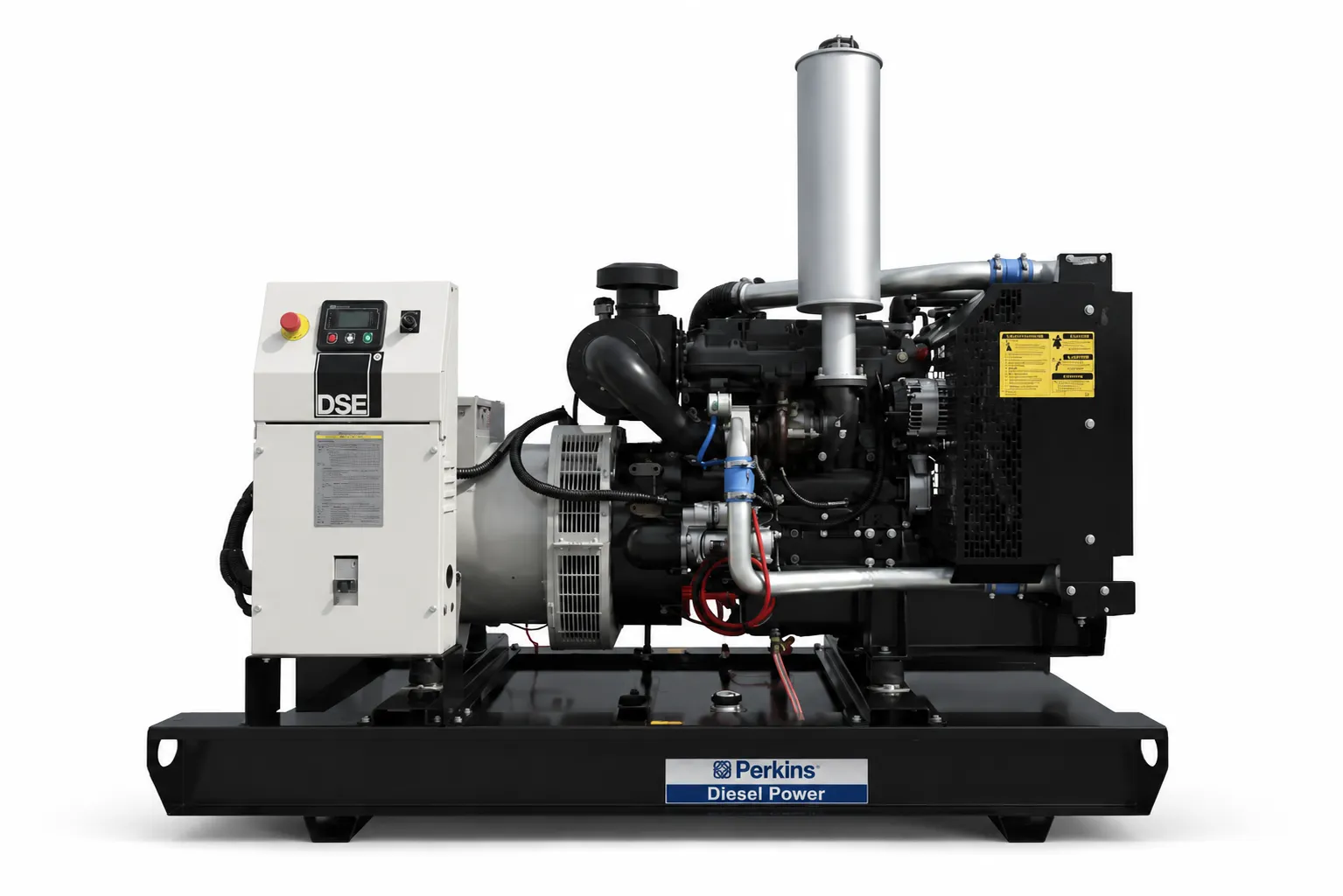

DIESEL GENERATOR SETS
Powered by Perkins
Perkins-powered UPS diesel generator sets for commercial, industrial and mission-critical applications.
- 50Hz and 60Hz specification ranges
- Open type and soundproof canopy options
- Prime and standby power solutions
- Engineered for GCC operating conditions
Product Images
TECHNICAL DATA
TECHNICAL DATA
Diesel Generator Sets Powered by Perkins
Perkins 50Hz / 60Hz generator specifications based on catalogue pages 4–5.
| Freq. | Model | Engine | Cyl. | Alternator | Prime kVA | Prime kW | Standby kVA | Standby kW | Fuel Prime | Fuel Standby | Closed Dimension | Open Dimension | Closed Weight | Open Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | UPSP10 | 403A-11G1 | 3 | TAL040 B | 9.0 | 7.2 | 9.9 | 7.9 | 3.0 | 3.6 | 1780*900*1380 | 1350*530*1092 | 500 | 400 |
| 50Hz | UPSP15 | 403A-15G2 | 3 | TAL040 D | 15.0 | 12.0 | 17.0 | 13.0 | 5.0 | 6.0 | 1780*900*1380 | 1320*530*1105 | 600 | 450 |
| 50Hz | UPSP20 | 404A-22G1 | 4 | TAL040 F | 20.3 | 16.2 | 22.3 | 17.8 | 5.3 | 6.1 | 1780*900*1380 | 1351*530*1152 | 700 | 450 |
| 50Hz | UPSP30 | 1103A-33G | 3 | TAL042 C | 30.0 | 24.0 | 33.0 | 26.4 | 7.2 | 8.1 | 2200*1000*1520 | 1650*770*1252 | 850 | 700 |
| 50Hz | UPSP45 | 1103A-33TG1 | 3 | TAL042 F | 45.0 | 36.0 | 49.6 | 39.7 | 10.8 | 11.7 | 2200*1000*1520 | 1650*770*1252 | 900 | 700 |
| 50Hz | UPSP60 | 1103A-33TG2 | 3 | TAL042 H | 60.0 | 48.0 | 66.0 | 52.8 | 14.6 | 15.9 | 2200*1000*1520 | 1702*801*1197 | 1000 | 800 |
| 50Hz | UPSP80 | 1104A-44TG2 | 4 | TAL044 B | 80.0 | 64.0 | 88.0 | 70.4 | 18.7 | 20.5 | 2400*1100*1650 | 2050*860*1310 | 1300 | 1000 |
| 50Hz | UPSP100 | 1104C-44TAG2 | 4 | TAL044 D | 101.4 | 81.4 | 111.9 | 89.6 | 22.6 | 24.9 | 2400*1100*1650 | 2050*860*1310 | 1400 | 1050 |
| 50Hz | UPSP135 | 1106A-70TG1 | 6 | TAL044 H | 135.0 | 108.0 | 150.0 | 120.0 | 30.2 | 33.8 | 2850*1100*1650 | 2440*860*1359 | 1600 | 1200 |
| 50Hz | UPSP150 | 1106A-70TAG2 | 6 | TAL044 J | 150.0 | 120.0 | 165.0 | 132.0 | 33.4 | 36.1 | 2850*1100*1650 | 2440*860*1359 | 1700 | 1400 |
| 50Hz | UPSP180 | 1106A-70TAG3 | 6 | TAL044 L | 180.0 | 144.0 | 200.0 | 160.0 | 41.4 | 45.1 | 3320*1100*1850 | 2350*900*1489 | 2000 | 1600 |
| 50Hz | UPSP200 | 1106A-70TAG4 | 6 | TAL044 M | 200.0 | 160.0 | 220.0 | 176.0 | 45.8 | 49.4 | 3320*1100*1850 | 2350*900*1489 | 2500 | 2000 |
| 50Hz | UPSP230 | 1206A-E70TTAG2 | 6 | TAL046 C | 225.0 | 180.0 | 250.0 | 200.0 | 51.0 | 56.6 | 3470*1300*2020 | 2750*1000*1549 | 2500 | 2000 |
| 50Hz | UPSP250 | 1506A-E88TAG3 | 6 | TAL046 D | 250.0 | 200.0 | 275.0 | 220.0 | 56.9 | 64.5 | 3470*1300*2020 | 2750*1000*1550 | 3000 | 2500 |
| 50Hz | UPSP300 | 1506A-E88TAG5 | 6 | TAL046 F | 300.0 | 240.0 | 330.0 | 264.0 | 64.9 | 73.1 | 3770*1300*2020 | 3200*1150*1988 | 3500 | 2800 |
| 50Hz | UPSP400 | 2206A-E13TAG3 | 6 | TAL0473 A | 400.0 | 320.0 | 450.0 | 360.0 | 81.0 | 90.0 | 3860*1380*2420 | 3360*1120*2248 | 4000 | 3400 |
| 50Hz | UPSP500 | 2506A-E15TAG2 | 6 | TAL0473 C | 500.0 | 400.0 | 550.0 | 440.0 | 100.0 | 111.0 | 4440*1380*2420 | 3600*1150*1990 | 4500 | 4000 |
| 50Hz | UPSP650 | 2806A-E18TAG2 | 6 | TAL0473 F | 650.0 | 520.0 | 700.0 | 560.0 | 132.0 | 143.0 | 4640*1680*2420 | 4640*1680*2000 | 5000 | 4500 |
| 50Hz | UPSP750 | 4006-23TAG2A | 6 | TAL049 B | 750.0 | 600.0 | 825.0 | 660.0 | 157.0 | 173.0 | 5800*2240*2400 | 4200*1720*2250 | 8000 | 7000 |
| 50Hz | UPSP1000 | 4008TAG2A | 8 | TAL049 E | 1022.0 | 818.0 | 1125.0 | 900.0 | 215.0 | 240.0 | 6008*2430*2598 | 4550*2070*2391 | 11000 | 9000 |
| 50Hz | UPSP1250 | 4012-46TWG2A | 12 | LSA50.2 M6 | 1250.0 | 1000.0 | 1385.0 | 1108.0 | 259.0 | 288.0 | 12192*2440*2900 | 4550*2070*2391 | 13000 | 11000 |
| 50Hz | UPSP1500 | 4012-46TAG2A | 12 | LSA50.2 L8 | 1505.0 | 1204.0 | 1656.0 | 1325.0 | 310.0 | 341.0 | 12192*2440*2900 | 4600*1998*2525 | 16000 | 13500 |
| 50Hz | UPSP1850 | 4016TAG1A | 16 | LSA52.3 S5 | 1844.0 | 1476.0 | 2028.0 | 1622.0 | 383.0 | 424.0 | 11500*3100*3600 | 5800*2740*3370 | 17000 | 14500 |
| 50Hz | UPSP2000 | 4016-TAG2A | 16 | LSA52.3 S6 | 2058.0 | 1646.0 | 2263.0 | 1811.0 | 434.0 | 483.0 | - | TO BE UPDATED | - | - |
| 50Hz | UPSP2250 | 4016-61TRG3 | 16 | LSA52.3 L9 | 2250.0 | 1800.0 | 2500.0 | 2000.0 | 470.0 | 529.0 | - | TO BE UPDATED | - | - |
| 60Hz | UPSP35 | 1103A-33G | 3 | TAL042 C | 35 | 28 | 38 | 31 | 8.6 | 9.5 | 2200*1000*1520 | 1650*770*1252 | 850 | 700 |
| 60Hz | UPSP53 | 1103A-33TG1 | 3 | TAL042 F | 53 | 43 | 59 | 47 | 12.9 | 14.3 | 2200*1000*1520 | 1650*770*1252 | 900 | 700 |
| 60Hz | UPSP68 | 1103A-33TG2 | 3 | TAL042 H | 68 | 55 | 75 | 60 | 16.6 | 18.2 | 2200*1000*1520 | 1702*801*1197 | 1000 | 800 |
| 60Hz | UPSP91 | 1104A-44TG2 | 4 | TAL044 B | 91.3 | 73 | 100.3 | 80.3 | 22.3 | 24.4 | 2400*1100*1650 | 2050*860*1310 | 1300 | 1000 |
| 60Hz | UPSP114 | 1104C-44TAG2 | 4 | TAL044 D | 114 | 92 | 127 | 101 | 22.3 | 24.4 | 2400*1100*1650 | 2050*860*1310 | 1400 | 1050 |
| 60Hz | UPSP152 | 1106A-70TG1 | 6 | TAL044 H | 152 | 122 | 169 | 135 | 26.9 | 29.7 | 2850*1100*1650 | 2440*860*1359 | 1600 | 1200 |
| 60Hz | UPSP169 | 1106A-70TAG2 | 6 | TAL044 J | 169 | 135 | 188 | 150 | 33.4 | 36.1 | 2850*1100*1650 | 2440*860*1359 | 1700 | 1400 |
| 60Hz | UPSP197 | 1106A-70TAG3 | 6 | TAL044 L | 197 | 158 | 219 | 175 | 46.4 | 50.5 | 3320*1100*1850 | 2350*900*1489 | 2000 | 1600 |
| 60Hz | UPSP225 | 1206A-E70TTAG2 | 6 | TAL046 C | 225 | 180 | 250 | 200 | 54.5 | 61.1 | 3470*1300*2020 | 2750*1000*1549 | 2500 | 2000 |
| 60Hz | UPSP245 | 1506A-E88TAG2 | 6 | TAL046 C | 245 | 196 | 269 | 215 | 54.2 | 59.5 | 3470*1300*2019 | 2750*1000*1549 | 2500 | 2000 |
| 60Hz | UPSP292 | 1506A-E88TAG3 | 6 | TAL046 D | 292 | 234 | 317 | 254 | 63.1 | 69.8 | 3470*1300*2020 | 2750*1000*1550 | 3000 | 2500 |
| 60Hz | UPSP350 | 1506A-E88TAG5 | 6 | TAL046 F | 352 | 282 | 386 | 309 | 77.1 | 85.7 | 3770*1300*2020 | 3200*1150*1988 | 3500 | 2800 |
| 60Hz | UPSP400 | 2206A-E13TAG2 | 6 | TAL046 H | 400 | 320 | 438 | 350 | 81.0 | 87.0 | 3860*1380*2419 | 3360*1120*2247 | 4000 | 3200 |
| 60Hz | UPSP500 | 2506A-E15TAG1 | 6 | TAL0473 B | 500 | 400 | 563 | 450 | 102.0 | 116.0 | 4440*1380*2419 | 3600*1150*1989 | 4500 | 4000 |
| 60Hz | UPSP625 | 2806A-E18TAG1A | 6 | TAL0473 E | 625 | 500 | 687 | 550 | 127.0 | 141.0 | 4640*1680*2420 | 3500*1480*2097 | 5000 | 4500 |
| 60Hz | UPSP750 | 4006-23TAG2A | 6 | TAL049 B | 750 | 600 | 825 | 660 | 177.0 | 199.0 | 5800*2240*2400 | 4200*1720*2250 | 8000 | 7000 |
| 60Hz | UPSP844 | 4006-23TAG3A | 6 | TAL049 C | 844 | 675 | 938 | 750 | 200.0 | 224.0 | 5800*2240*2400 | 4175*1720*2218 | 8500 | 7500 |
| 60Hz | UPSP995 | 4008TAG2A | 8 | TAL049 E | 995 | 796 | 1097 | 878 | 224.0 | 249.0 | 6008*2430*2598 | 4550*2070*2391 | 11000 | 9000 |
| 60Hz | UPSP1250 | 4012-46TWG2A | 12 | LSA50.2 M6 | 1253 | 1002 | 1385 | 1108 | 266.0 | 298.0 | 12192*2440*2900 | 4550*2070*2391 | 13000 | 11000 |
| 60Hz | UPSP1500 | 4012-46TAG2A | 12 | LSA50.2 L8 | 1511 | 1208 | 1661 | 1329 | 319.0 | 251.0 | 12192*2440*2900 | 4600*1998*2525 | 16000 | 13500 |

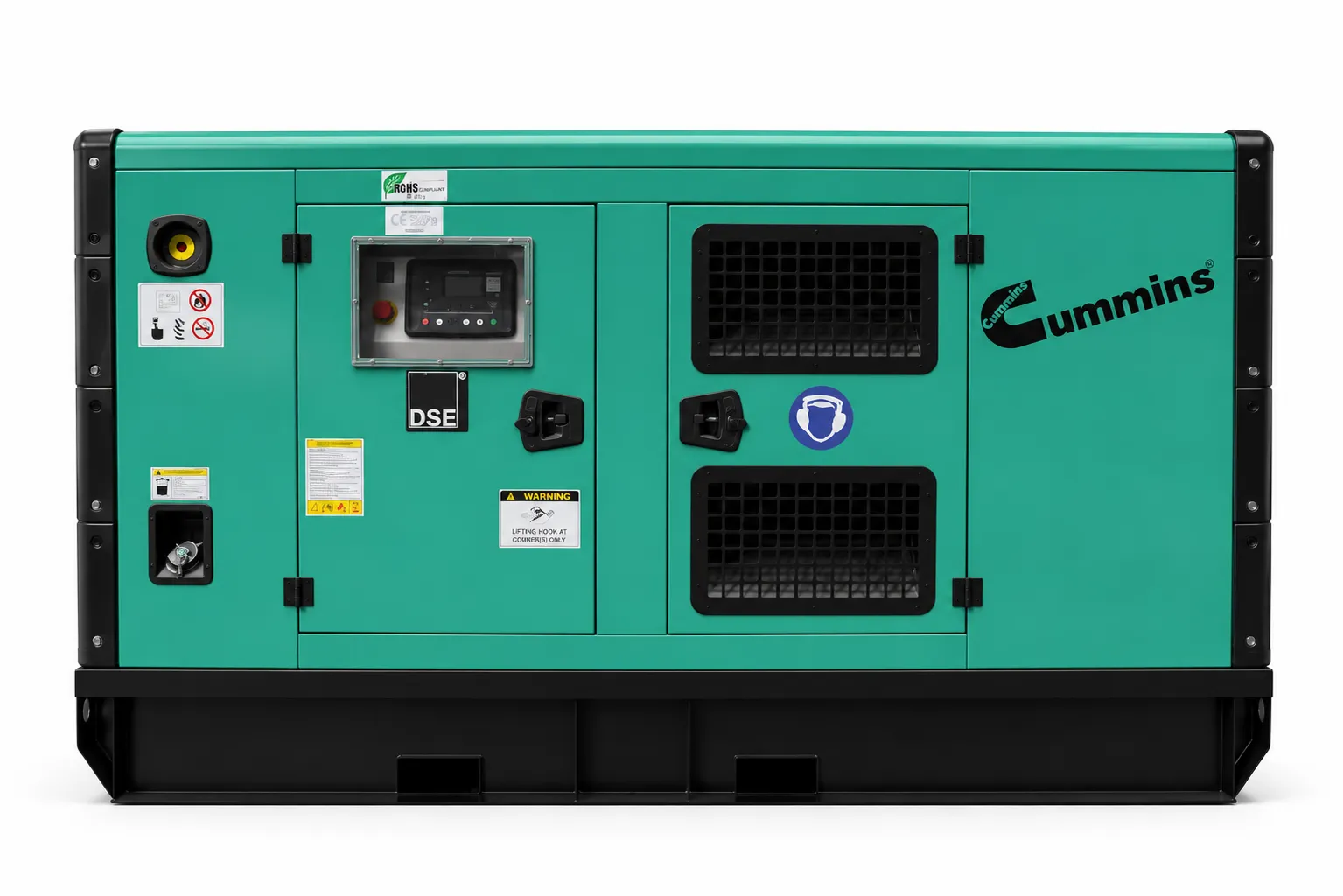

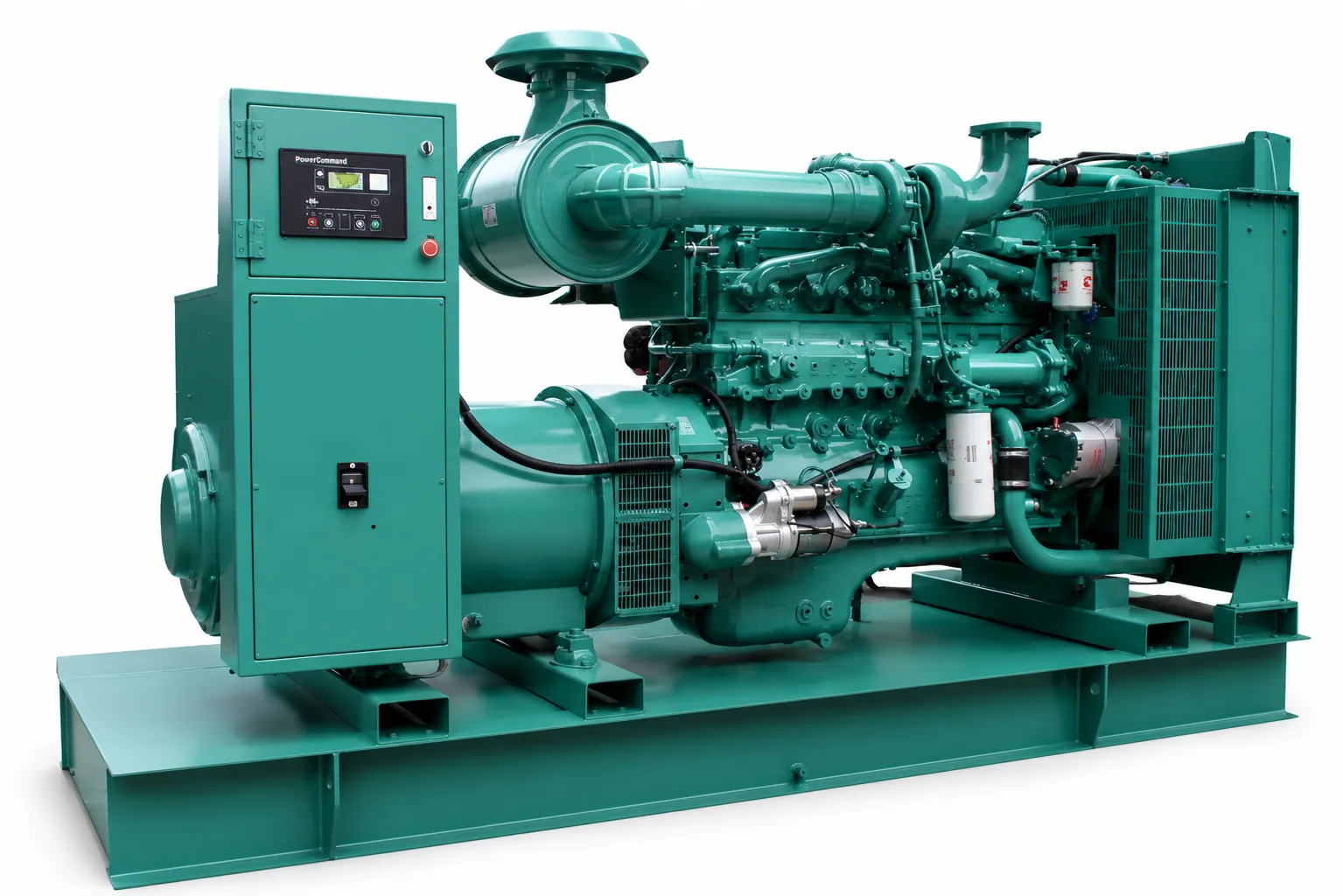

DIESEL GENERATOR SETS
Powered by Cummins
Cummins-powered generator sets built for durability, serviceability and high-load operation.
- 50Hz and 60Hz power range
- Open and enclosed gensets
- Heavy-duty industrial applications
- OEM-backed component ecosystem
Product Images
TECHNICAL DATA
TECHNICAL DATA
Diesel Generator Sets Powered by Cummins
Cummins 50Hz / 60Hz generator specifications based on catalogue pages 6–7.
| Freq. | Model | Engine | Cyl. | Alternator | Prime kVA | Prime kW | Standby kVA | Standby kW | Fuel Cons. L/Hr | Closed Dimension | Closed Weight | Open Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | UPSC35 | 4BT3.9-G2 | 4 | LSA/TAL042 D | 35.0 | 28.0 | 38.5 | 30.8 | 6.7 | 1700*900*1357 | 400 | 360 |
| 50Hz | UPSC40 | 4BT3.9-G2 | 4 | LSA/TAL042 E | 40.0 | 32.0 | 44.0 | 35.2 | 8.0 | 1700*900*1357 | 500 | 450 |
| 50Hz | UPSC60 | 4BTA3.9-G2 | 4 | LSA/TAL042 H | 60.0 | 48.0 | 66.0 | 52.8 | 11.0 | 1700*900*1357 | 600 | 540 |
| 50Hz | UPSC100 | 6BT5.9-G1 | 6 | LSA/TAL044 D | 100.0 | 80.0 | 110.0 | 88.0 | 16.0 | 1700*900*1357 | 600 | 540 |
| 50Hz | UPSC114 | 6BT5.9-G1 | 6 | LSA/TAL044 D | 114.0 | 91.2 | 125.4 | 100.3 | 22.0 | 2100*950*1180 | 850 | 765 |
| 50Hz | UPSC130 | 6BTAA5.9-G2 | 6 | LSA/TAL044 H | 130.0 | 104.0 | 143.0 | 114.4 | 26.0 | 2100*950*1180 | 950 | 855 |
| 50Hz | UPSC160 | 6CTA8.3-G2 | 6 | LSA/TAL044 J | 160.0 | 128.0 | 176.0 | 140.8 | 33.0 | 2100*950*1180 | 1050 | 945 |
| 50Hz | UPSC200 | 6CTAA8.3-G1 | 6 | LSA/TAL046 B | 200.0 | 160.0 | 220.0 | 176.0 | 43.0 | 2800*1100*1637 | 1100 | 990 |
| 50Hz | UPSC250 | 6CTAA8.3-G2 | 6 | LSA/TAL046 D | 250.0 | 200.0 | 275.0 | 220.0 | 44.0 | 2800*1100*1637 | 1250 | 1125 |
| 50Hz | UPSC300 | NT855-G1 | 6 | LSA/TAL046 F | 300.0 | 240.0 | 330.0 | 264.0 | 61.0 | 2800*1100*1637 | 1500 | 1350 |
| 50Hz | UPSC350 | NTA855-G1A | 6 | LSA/TAL046 H | 350.0 | 280.0 | 385.0 | 308.0 | 72.0 | 2800*1100*1637 | 1600 | 1440 |
| 50Hz | UPSC410 | KTA19-G2 | 6 | LSA/TAL047 A | 410.0 | 328.0 | 451.0 | 360.8 | 108.0 | 2800*1100*1637 | 2015 | 1813.5 |
| 50Hz | UPSC450 | KTA19-G3 | 6 | LSA/TAL047 B | 450.0 | 360.0 | 495.0 | 396.0 | 97.0 | 3470*1300*1600 | 2500 | 2250 |
| 50Hz | UPSC500 | KTA19-G4 | 6 | LSA/TAL047 C | 500.0 | 400.0 | 550.0 | 440.0 | 100.0 | 3470*1300*1600 | 2400 | 2160 |
| 50Hz | UPSC568 | KTAA19-G7 | 6 | LSA/TAL047 D | 568.0 | 454.4 | 624.8 | 499.8 | 113.0 | 3470*1300*1600 | 2550 | 2295 |
| 50Hz | UPSC750 | KTA38-G2 | 12 | LSA 49.1 M6 | 750.0 | 600.0 | 825.0 | 660.0 | 157.0 | 3470*1300*1600 | 2750 | 2475 |
| 50Hz | UPSC909 | KTA38-G2A | 12 | LSA 49.1 L10 | 909.0 | 727.2 | 999.9 | 799.9 | 191.0 | 3860*1380*1800 | 3030 | 2727 |
| 50Hz | UPSC1000 | KTA38-G5 | 12 | LSA/TAL049 E | 1000.0 | 800.0 | 1100.0 | 880.0 | 190.0 | 3860*1380*1800 | 3316 | 2984.4 |
| 50Hz | UPSC1125 | KTA50-G3 | 12 | LSA 50.2 M6 | 1125.0 | 900.0 | 1237.5 | 990.0 | 252.0 | 4440*1380*2400 | 3453 | 3107.7 |
| 60Hz | UPSC35 | 4BT3.9-G2 | 4 | LSA/TAL042 D | 35.0 | 28.0 | 38.5 | 30.8 | 6.7 | 1700*900*1357 | 400 | 360 |
| 60Hz | UPSC40 | 4BT3.9-G2 | 4 | LSA/TAL042 E | 40.0 | 32.0 | 44.0 | 35.2 | 8.0 | 1700*900*1357 | 500 | 450 |
| 60Hz | UPSC60 | 4BTA3.9-G2 | 4 | LSA/TAL042 H | 60.0 | 48.0 | 66.0 | 52.8 | 11.0 | 1700*900*1357 | 600 | 540 |
| 60Hz | UPSC100 | 6BT5.9-G1 | 6 | LSA/TAL044 D | 100.0 | 80.0 | 110.0 | 88.0 | 16.0 | 1700*900*1357 | 600 | 540 |
| 60Hz | UPSC114 | 6BT5.9-G1 | 6 | LSA/TAL044 D | 114.0 | 91.2 | 125.4 | 100.3 | 22.0 | 2100*950*1180 | 850 | 765 |
| 60Hz | UPSC130 | 6BTAA5.9-G2 | 6 | LSA/TAL044 H | 130.0 | 104.0 | 143.0 | 114.4 | 26.0 | 2100*950*1180 | 950 | 855 |
| 60Hz | UPSC160 | 6CTA8.3-G2 | 6 | LSA/TAL044 J | 160.0 | 128.0 | 176.0 | 140.8 | 33.0 | 2100*950*1180 | 1050 | 945 |
| 60Hz | UPSC200 | 6CTAA8.3-G1 | 6 | LSA/TAL046 B | 200.0 | 160.0 | 220.0 | 176.0 | 43.0 | 2800*1100*1637 | 1100 | 990 |
| 60Hz | UPSC250 | 6CTAA8.3-G2 | 6 | LSA/TAL046 D | 250.0 | 200.0 | 275.0 | 220.0 | 44.0 | 2800*1100*1637 | 1250 | 1125 |
| 60Hz | UPSC300 | NT855-G1 | 6 | LSA/TAL046 F | 300.0 | 240.0 | 330.0 | 264.0 | 61.0 | 2800*1100*1637 | 1500 | 1350 |
| 60Hz | UPSC350 | NTA855-G1A | 6 | LSA/TAL046 H | 350.0 | 280.0 | 385.0 | 308.0 | 72.0 | 2800*1100*1637 | 1600 | 1440 |
| 60Hz | UPSC410 | KTA19-G2 | 6 | LSA/TAL047 A | 410.0 | 328.0 | 451.0 | 360.8 | 108.0 | 2800*1100*1637 | 2015 | 1813.5 |
| 60Hz | UPSC450 | KTA19-G3 | 6 | LSA/TAL047 B | 450.0 | 360.0 | 495.0 | 396.0 | 97.0 | 3470*1300*1600 | 2500 | 2250 |
| 60Hz | UPSC500 | KTA19-G4 | 6 | LSA/TAL047 C | 500.0 | 400.0 | 550.0 | 440.0 | 100.0 | 3470*1300*1600 | 2400 | 2160 |
| 60Hz | UPSC568 | KTAA19-G7 | 6 | LSA/TAL047 D | 568.0 | 454.4 | 624.8 | 499.8 | 113.0 | 3470*1300*1600 | 2550 | 2295 |
| 60Hz | UPSC750 | KTA38-G2 | 12 | LSA 49.1 M6 | 750.0 | 600.0 | 825.0 | 660.0 | 157.0 | 3470*1300*1600 | 2750 | 2475 |
| 60Hz | UPSC909 | KTA38-G2A | 12 | LSA 49.1 L10 | 909.0 | 727.2 | 999.9 | 799.9 | 191.0 | 3860*1380*1800 | 3030 | 2727 |
| 60Hz | UPSC1000 | KTA38-G5 | 12 | LSA/TAL049 E | 1000.0 | 800.0 | 1100.0 | 880.0 | 190.0 | 3860*1380*1800 | 3316 | 2984.4 |
| 60Hz | UPSC1125 | KTA50-G3 | 12 | LSA 50.2 M6 | 1125.0 | 900.0 | 1237.5 | 990.0 | 252.0 | 4440*1380*2400 | 3453 | 3107.7 |

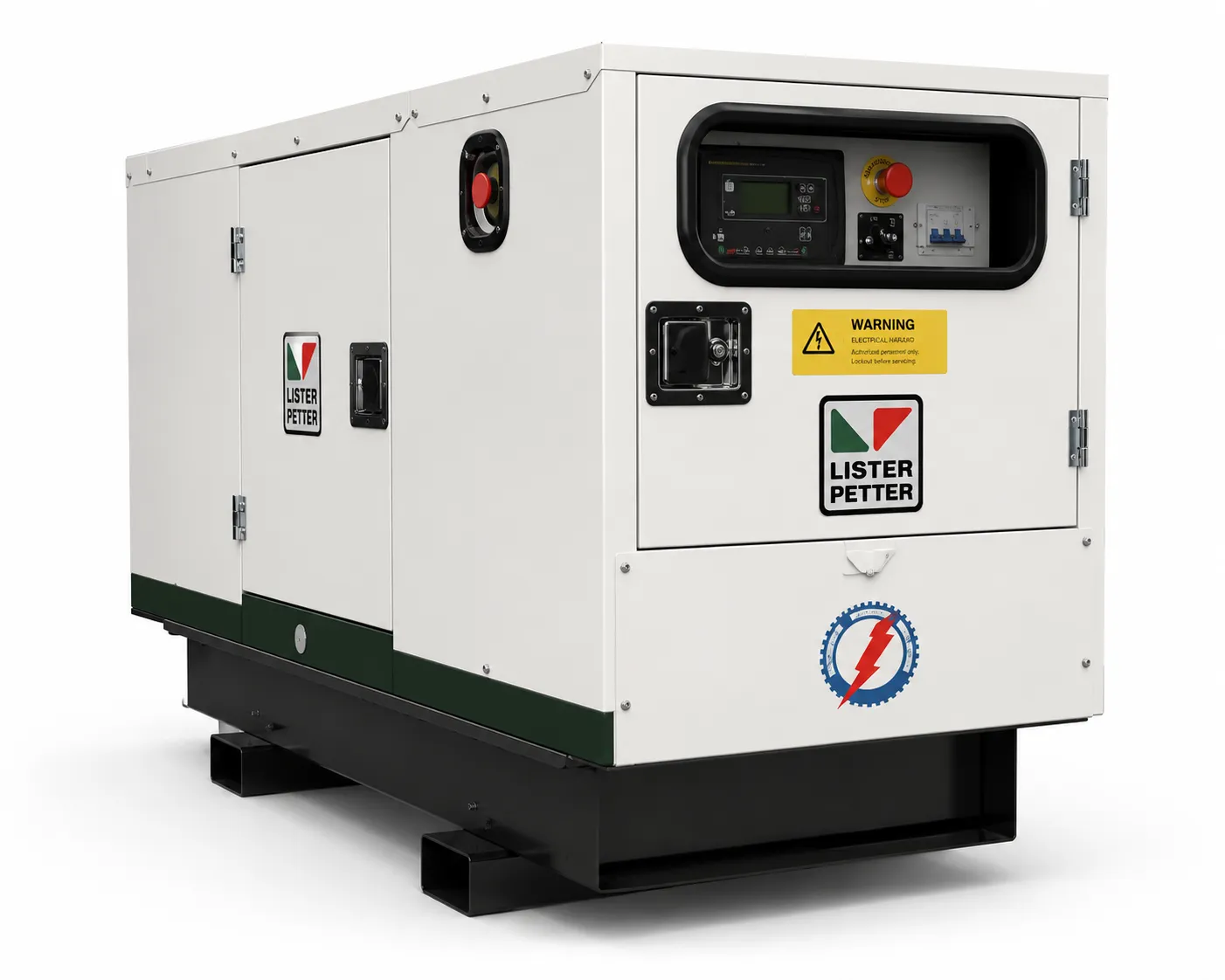

DIESEL GENERATOR SETS
Powered by Lister Petter
Water-cooled Lister Petter generating sets with compact industrial configurations.
- Water-cooled diesel engine
- AVR voltage regulation
- Open or acoustic canopy options
- Starter battery and control panel options
Product Images
TECHNICAL DATA
TECHNICAL DATA
Diesel Generator Sets Powered by Lister Petter
Lister Petter Prime and Standby Power Ratings based on catalogue page 9.
| Model | KVA | KW | Dimension L×W×H | Weight KG | Engine Model | Cyl. | Capacity L/C | Bore mm | Stroke mm | Fuel Cons. L/Hr | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standby | Continuous | Standby | Continuous | |||||||||
| L. 10 | 11 | 10 | 8.8 | 8 | 1300×500×800 | 410 | LPW 2 | 2 | 0.93 | 86 | 80 | 2 |
| L. 15 | 17 | 15 | 13.6 | 12 | 1300×500×800 | 450 | LPW 3 | 3 | 1.39 | 86 | 80 | 3 |
| L. 20 | 22 | 20 | 17.6 | 16 | 1400×620×900 | 490 | LPW 4 | 4 | 1.86 | 86 | 80 | 4 |
| L. 25 | 28 | 25 | 22.4 | 20 | 1400×620×900 | 520 | LPW 4T | 4 | 1.96 | 86 | 80 | 5 |
| L. 30 | 33 | 30 | 26.4 | 24 | 1600×720×1000 | 590 | DWS 4 | 4 | 3.33 | 86 | 80 | 7 |
| L. 130 | 112 | 102 | 90 | 81.6 | 2400×750×1300 | 960 | LLO 125 | 6 | 9.72 | 116.6 | 135.9 | 25 |
| L. 140 | 150 | 136 | 120 | 108.8 | 2800×800×1450 | 1150 | LLO 150 | 6 | 9.72 | 116.6 | 135.9 | 35 |
| L. 200 | 166 | 150 | 132 | 120 | 2800×800×1450 | 1250 | LLO 200 | 6 | 9.72 | 116.6 | 135.9 | 42 |
| L. 230 | 229 | 208 | 183 | 166 | 2900×1000×1700 | 2000 | LLO 230 | 6 | 9.72 | 116.6 | 135.9 | 48 |
| L. 250 | 250 | 228 | 200 | 182 | 2900×1000×1700 | 2100 | LLO 250 | 6 | 9.72 | 116.6 | 135.9 | 52 |
Standard Features
Starting system12V starter battery and leads
ProtectionCircuit breaker with thermal overload
DocumentationElectrical diagram and operator handbook
OptionsResidential silencer and acoustic canopy kit

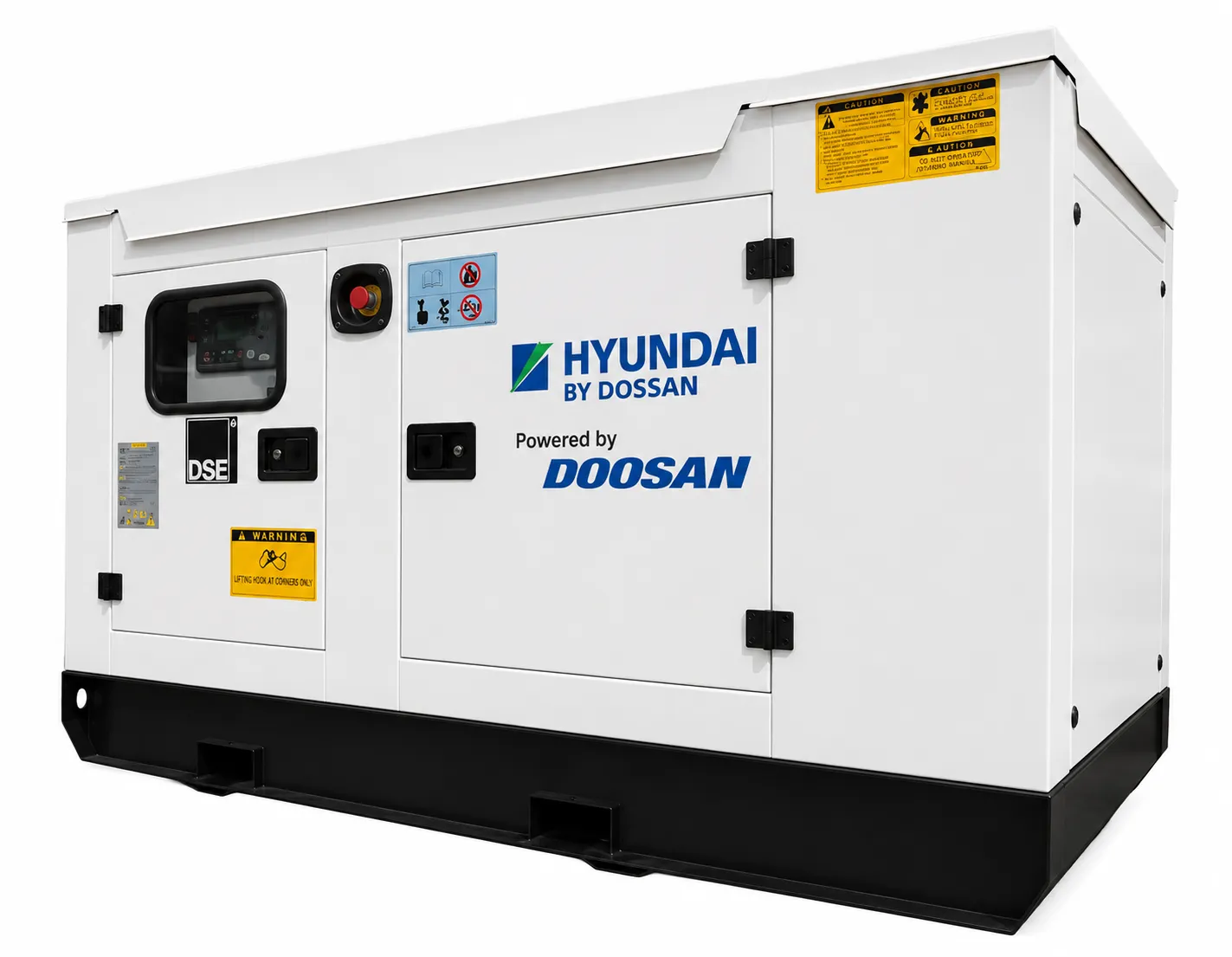

DIESEL GENERATOR SETS
Powered by Hyundai (Doosan)
Doosan diesel generator sets for compact-to-heavy applications with strong output range.
- 50Hz specification range
- Industrial engine platforms
- Prime and standby duties
- Suitable for packaged generator assemblies
Product Images
TECHNICAL DATA
TECHNICAL DATA
Diesel Generator Sets Powered by Hyundai (Doosan)
Doosan Specification 50Hz.
| Genset Type | Engine | No. of Cylinders | Alternator | Prime | Standby | Cons. L/H | Dimension M | Weight KG | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KVA | KW | KVA | KW | L | W | H | ||||||
| UPSD165 | DP086TA | 6 | LSA/TAL044 J | 165 | 132 | 184 | 184 | 33.7 | 2.5 | 0.76 | 1.4 | 1700 |
| UPSD180 | P086TI-1 | 6 | LSA/TAL044 L | 180 | 144 | 199 | 159 | 35.4 | 3.32 | 1.1 | 1.85 | 2000 |
| UPSD215 | P086TI | 6 | LSA/TAL044 M | 215 | 172 | 243 | 194 | 43.1 | 2.7 | 0.99 | 1.72 | 2500 |
| UPSD245 | DP086LA | 6 | LSA/TAL046 D | 245 | 196 | 274 | 219 | 48.7 | 3.42 | 1.1 | 2.01 | 2800 |
| UPSD300 | P126TI | 6 | LSA/TAL046 F | 293 | 234 | 331 | 265 | 58.1 | 3.4 | 1.12 | 1.85 | 3200 |
| UPSD323 | P126TI-11 | 6 | LSA/TAL046 F | 323 | 258 | 359 | 287 | 63.1 | 3.86 | 1.38 | 2.42 | 3400 |
| UPSD350 | DP126LA | 6 | LSA/TAL046 H | 346 | 277 | 381 | 305 | 68.1 | 3.86 | 1.38 | 2.42 | 3600 |
| UPSD389 | DP126LB | 6 | LSA/TAL046 H | 389 | 311 | 433 | 346 | 76.1 | 3.86 | 1.38 | 2.42 | 3800 |
| UPSD434 | P158LE | 8 | LSA/TAL0473 | 434 | 347 | 498 | 398 | 89.3 | 3.86 | 1.38 | 2.42 | 3900 |
| UPSD490 | DP158LC | 8 | LSA/TAL0473 | 490 | 392 | 541 | 433 | 99.6 | 4.44 | 1.38 | 2.48 | 4100 |
| UPSD560 | DP158LD | 8 | LSA/TAL0473 | 560 | 448 | 618 | 494 | 115.1 | 4.44 | 1.38 | 2.48 | 4500 |
| UPSD608 | DP180LA | 10 | LSA/TAL0473 | 608 | 486 | 670 | 536 | 123.6 | 4.44 | 1.38 | 2.48 | 4800 |
| UPSD675 | DP180LB | 10 | LSA/TAL0473 | 675 | 540 | 745 | 596 | 136.4 | 4.64 | 1.68 | 2.42 | 5000 |
| UPSD725 | DP222LB | 12 | LSA/TAL049 B | 725 | 580 | 800 | 640 | 147.1 | 5.8 | 2.58 | 6200 | |

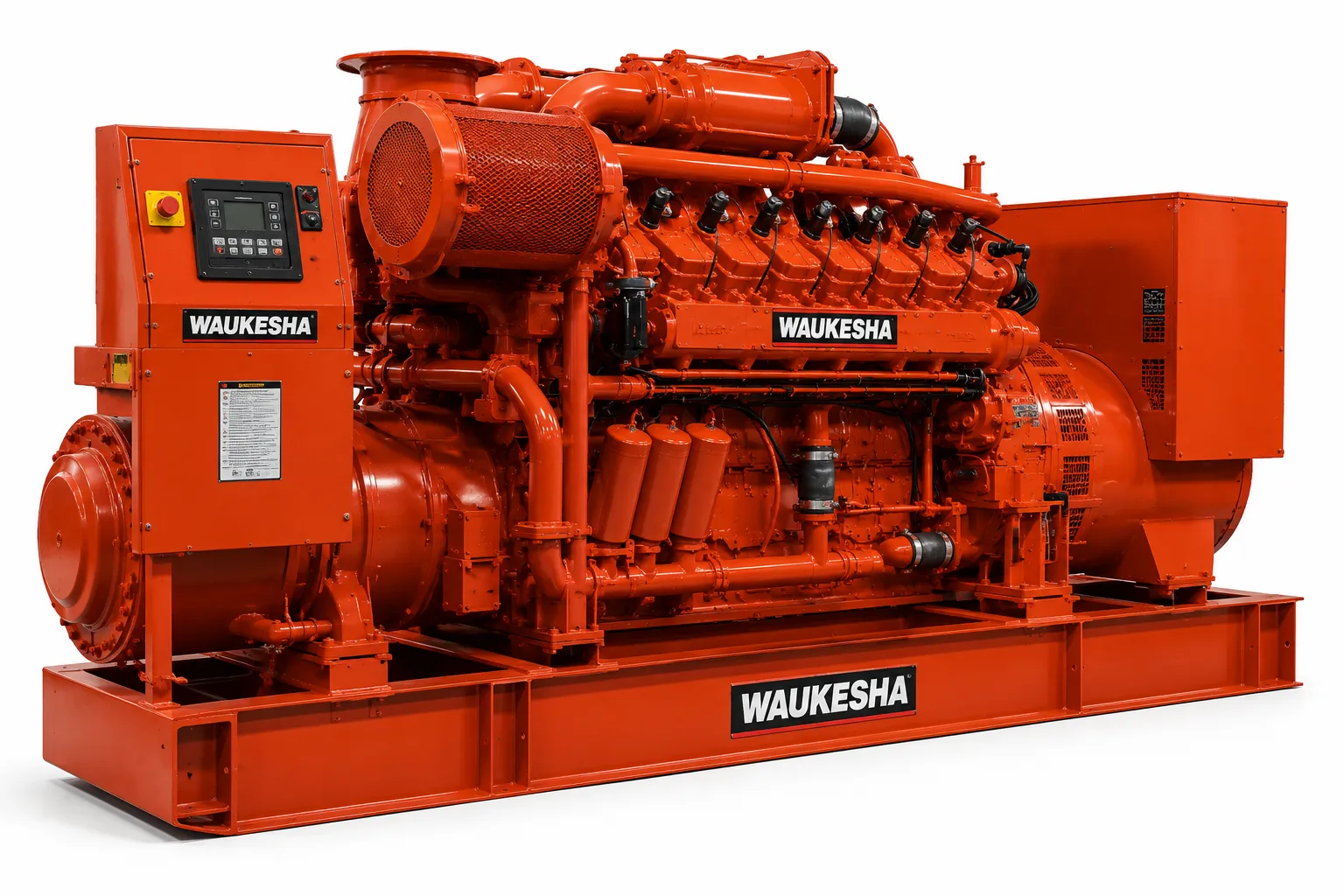

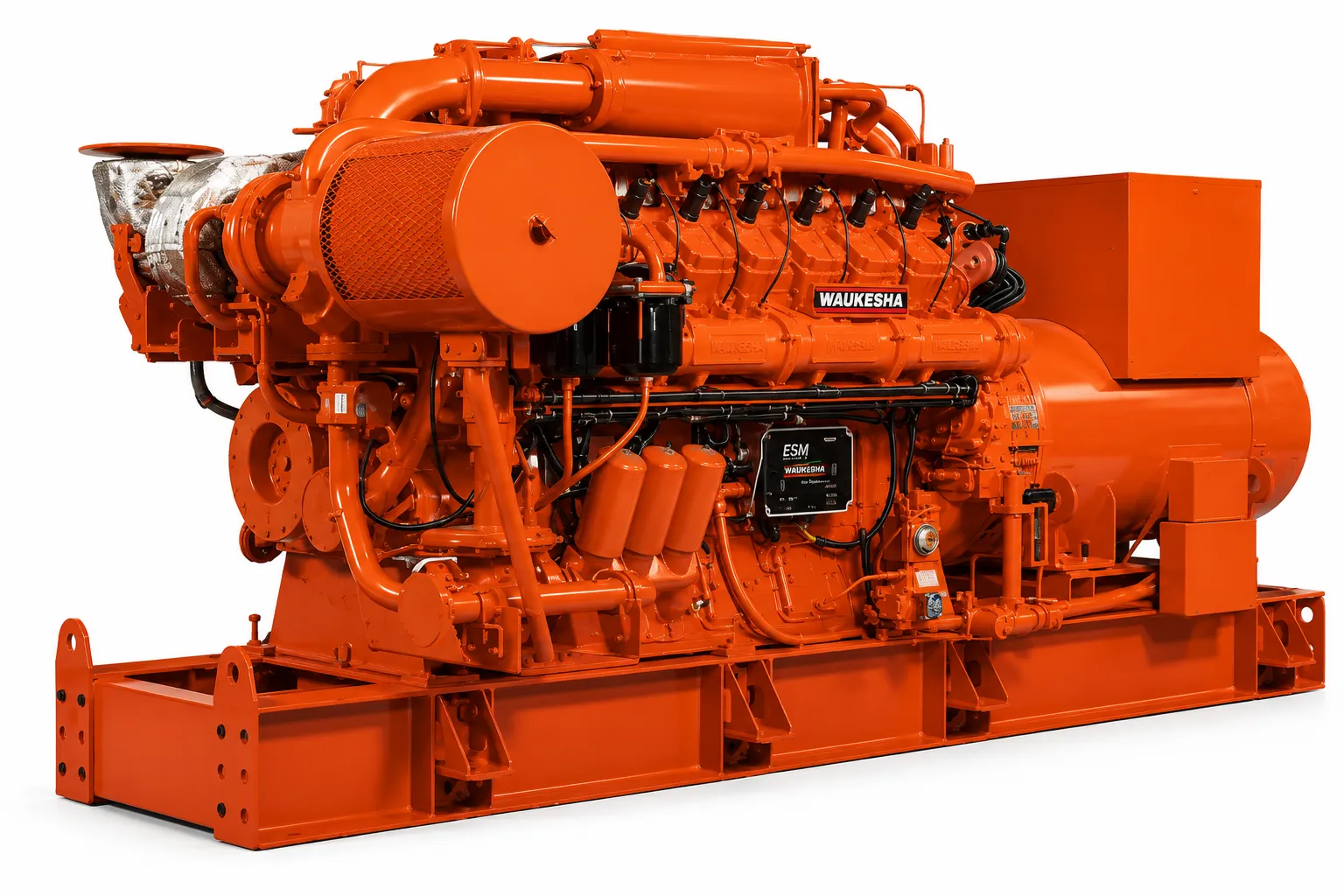

GAS GEN-SETS
UPS / Waukesha
Natural gas generator solutions designed for power, cogeneration and industrial requirements.
- Waukesha 140kW–3250kW series
- Natural gas and CHP applications
- Continuous and standby options
- High-efficiency gas engine operation
Product Images
TECHNICAL DATA
TECHNICAL DATA
GAS GEN-SETS UPS / Waukesha
UPS / Waukesha 140KW–3250KW Series Natural Gas specification based on catalogue pages 10–11.
| Engine Family | Model | Remote Radiator Cooling (CWE) 50Hz | Only (kWe) 50Hz | |
|---|---|---|---|---|
| Continuous 1000rpm | Standby 1000rpm | Continuous 1000rpm | ||
| ATGL | 16V-AI27GL | 3250 | 3250 | 3356 |
| ATGL | 12V-AI27GL | 2220 | 2440 | 2335 |
| ATGL | BL-AI27GL | 1480 | 1630 | 1560 |
| APG | APG1000 | 1000 | 1038 | |
| APG | APG2000 | 2100 | 2200 | |
| APG | APG3000 | 3200 | 3300 | |
| VHP | VHP9500GSI | 1175 | 1450 | 1224 |
| VHP | VHP9500GI | 1175 | 1295 | 1224 |
| VHP | VHP7104GSI | 1100 | 1100 | 1537 |
| VHP | VHP7104GSID | 1100 | 1100 | 1153 |
| VHP | VHP7100GSI | 875 | 1075 | 919 |
| VHP | VHP7100GSI | 875 | 1075 | 919 |
| VHP | VHP7100GL | 875 | 965 | 919 |
| VHP | VHP7100G | 635 | 710 | 668 |
| VHP | VHP5904LT | 900 | 940 | 947 |
| VHP | VHP5904LTD | 900 | 900 | 947 |
| VHP | VHP5904GSI | 900 | 900 | 947 |
| VHP | VHP5904GSID | 900 | 900 | 947 |
| VHP | VHP5900G | 475 | 525 | 550 |
| VHP | VHP3604GSI | 540 | 540 | 573 |
| VHP | VHP3604GSID | 540 | 540 | 573 |
| VHP | VHP3600G | 315 | 350 | 340 |
| VGF | VGF48GL | 685 | 715 | 730 |
| VGF | VGF48GLD | 685 | 715 | 730 |
| VGF | VGF48GLD/2 | 830 | ||
| VGF | VGF48GSI/GSID | 625 | 685 | 660 |
| VGF | VGF36GL | 515 | 535 | 550 |
| VGF | VGF36GLD | 515 | 535 | 550 |
| VGF | VGF36GLD/2 | 620 | ||
| VGF | VGF36GSI/GSID | 475 | 515 | 500 |
| VGF | VGF24GL | 340 | 355 | 365 |
| VGF | VGF24GLD | 340 | 355 | 365 |
| VGF | VGF24GLD/2 | 414 | ||
| VGF | VGF24GSI/GSID | 310 | 340 | 330 |
| VGF | VGF18GL | 250 | 260 | 273 |
| VGF | VGF18GLD | 250 | 260 | 275 |
| VGF | VGF18GLD/2 | 310 | ||
| VGF | VGF18GSI/GSID | 230 | 255 | 250 |
| VSG | VSG11GSI/GSID | 140 | 150 | 155 |

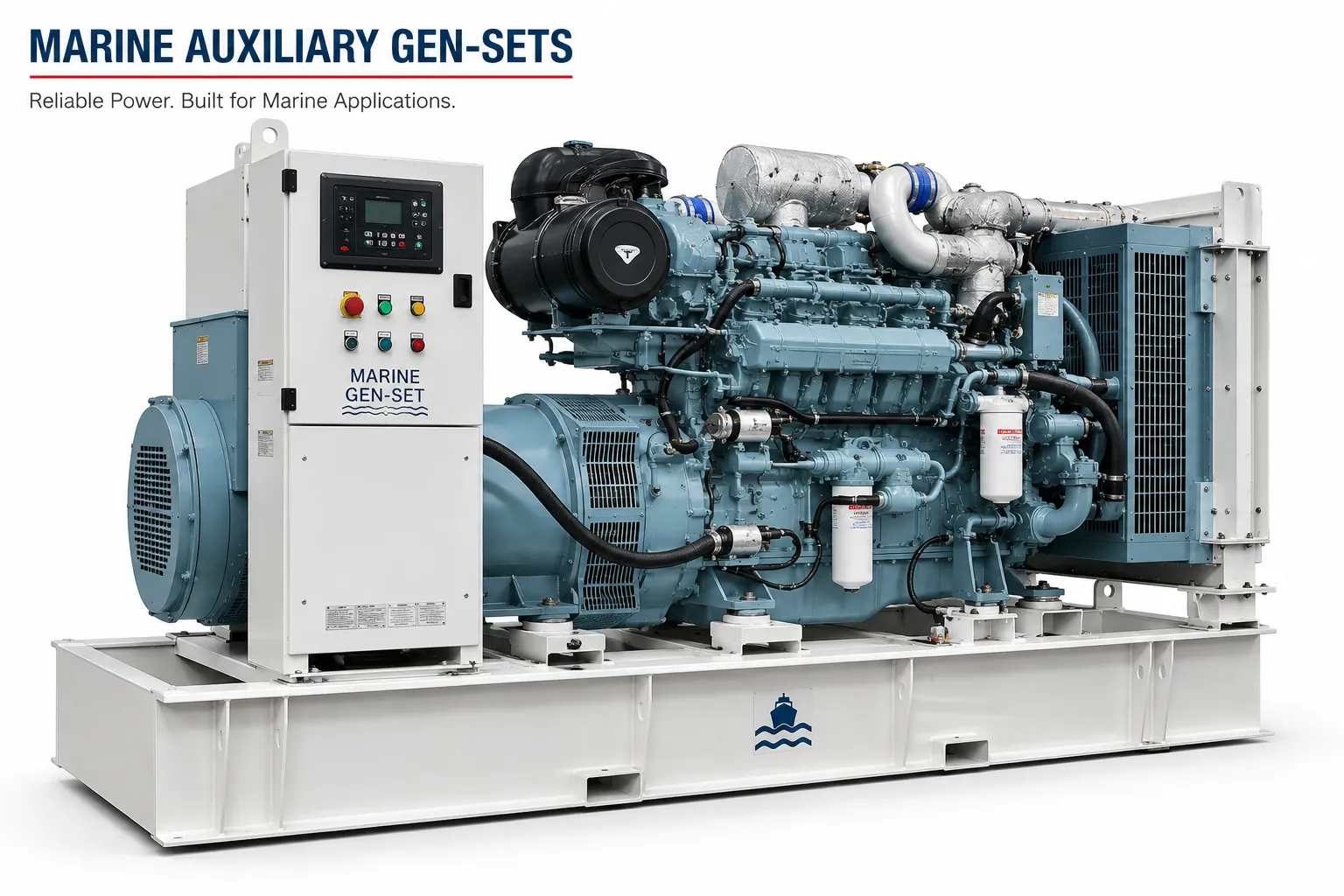

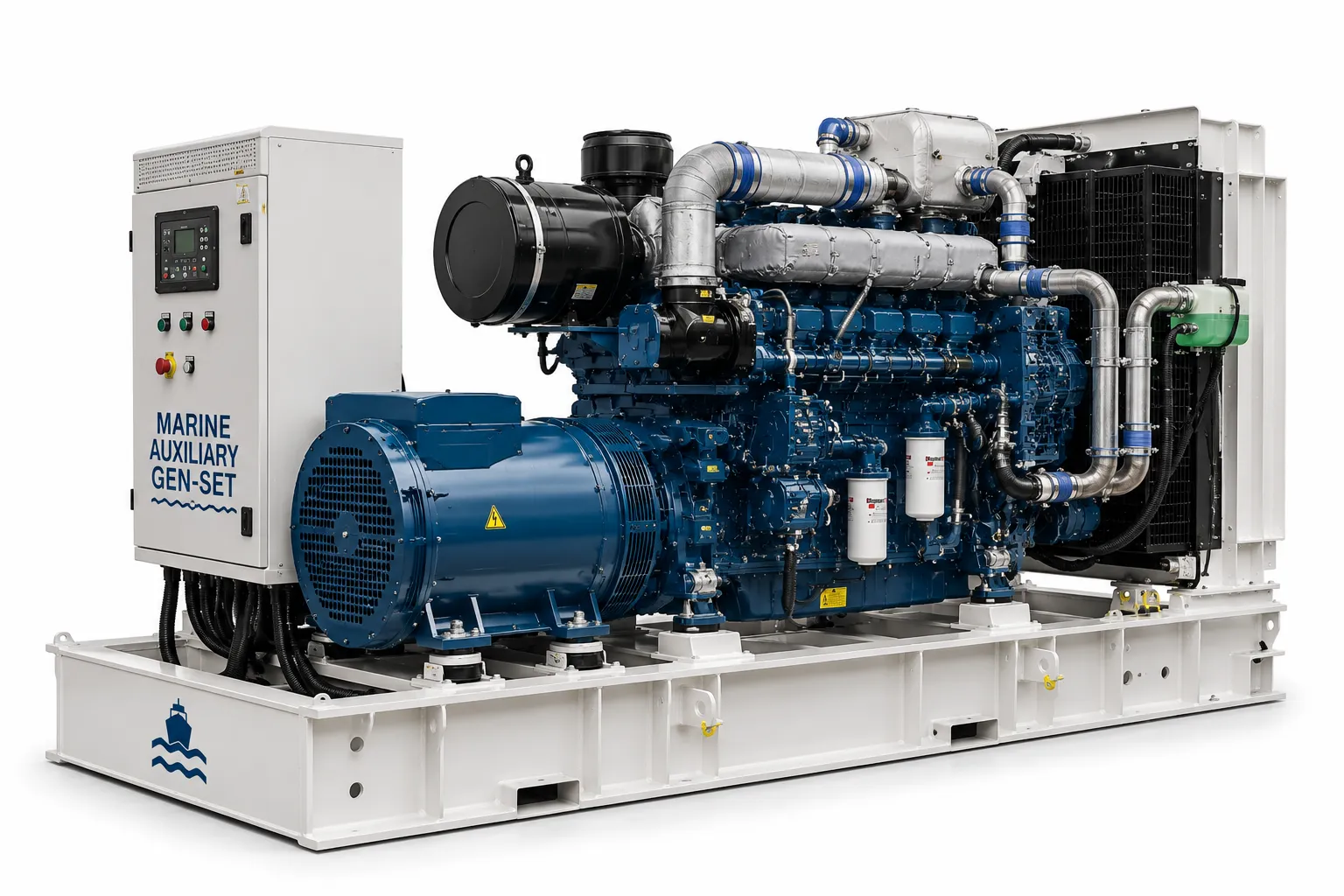

MARINE AUXILIARY GEN-SETS
Marine Auxiliary
Marine auxiliary generator sets prepared for offshore, vessel and marine support power requirements.
- Marine auxiliary power packages
- Onan / marine generator options
- Robust enclosed configurations
- Built for demanding environments
Product Images
TECHNICAL DATA
Marine Auxiliary Data
ApplicationVessels, auxiliary systems and marine support
ConfigurationOpen or enclosed marine generator packages
SupportSpare parts and after-market service
WarrantyInternational warranty support where applicable
MOBILE GEN-SETS
Mobile Power
Trailer and vehicle power stations for fast deployment, rental projects and field operations.
- Vehicle power station options
- Trailer-mounted generator sets
- Fast site deployment
- Suitable for temporary and emergency power
Product Images
TECHNICAL DATA
Mobile Gen-Set Data
FormatsVehicle power station / trailer power station
MobilityTowable and field-ready solutions
Use casesRental, construction, emergency and remote sites
SupportInstallation, operation and field service

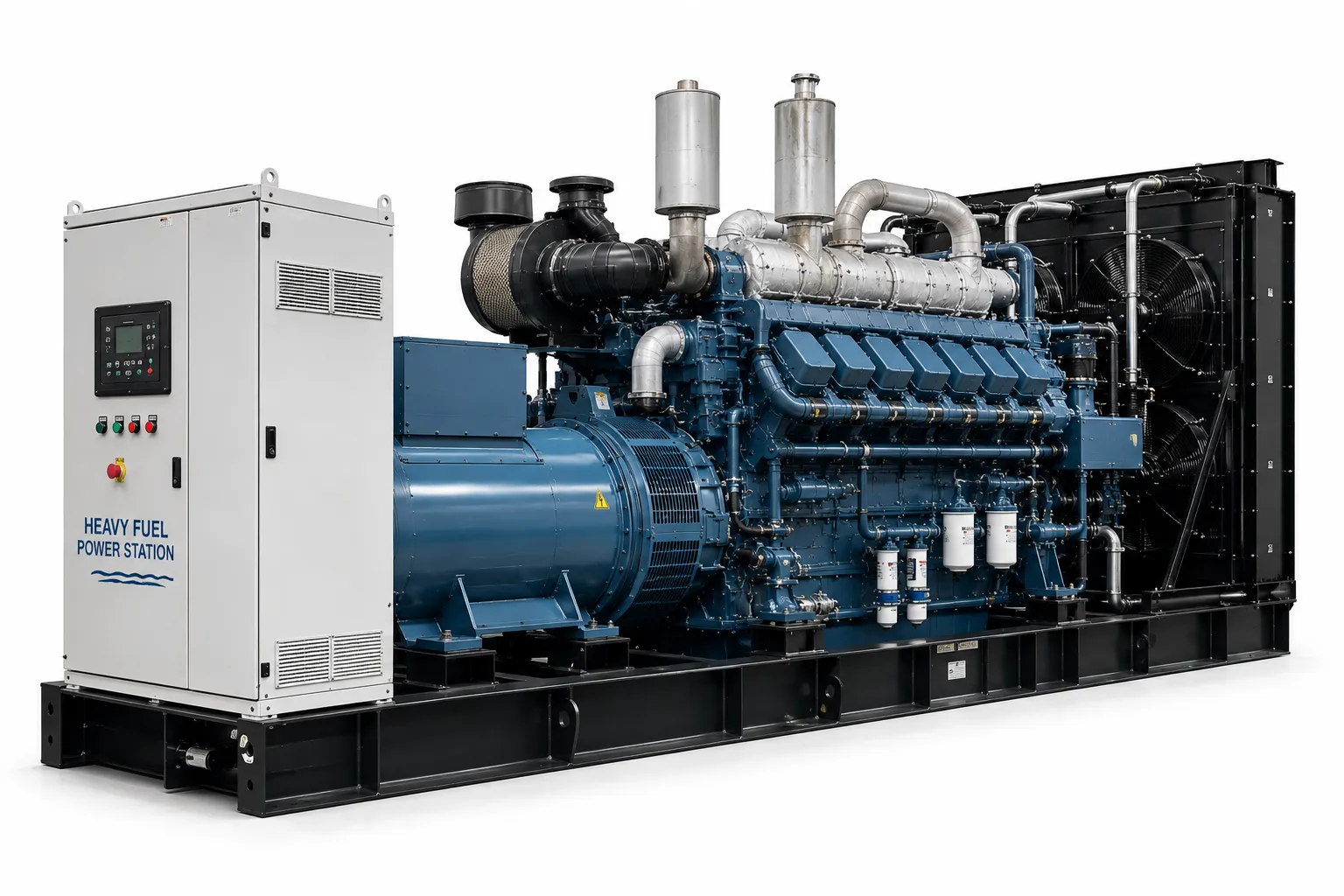

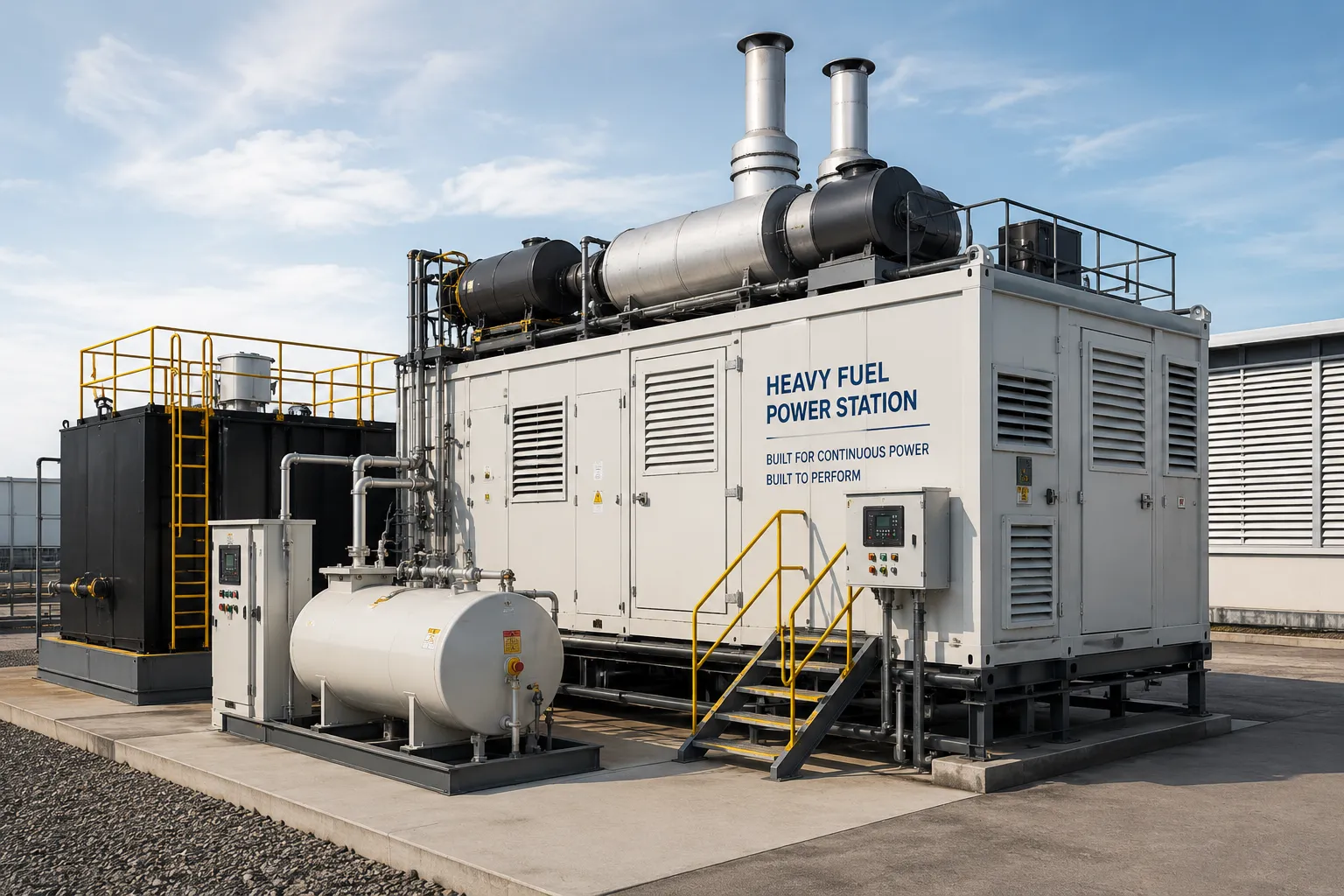

HEAVY FUEL POWER STATIONS
Heavy Fuel
Heavy fuel power stations for large-scale generation, continuous duty and industrial infrastructure.
- Large power station configuration
- Industrial engine platforms
- Fuel systems and site infrastructure
- Designed for high-output operations
Product Images
TECHNICAL DATA
Heavy Fuel Power Station Data
ApplicationIndustrial power generation and power stations
ScopeEngine, alternator, fuel and cooling systems
OperationContinuous and standby power capability
IntegrationDesigned around site-specific requirements

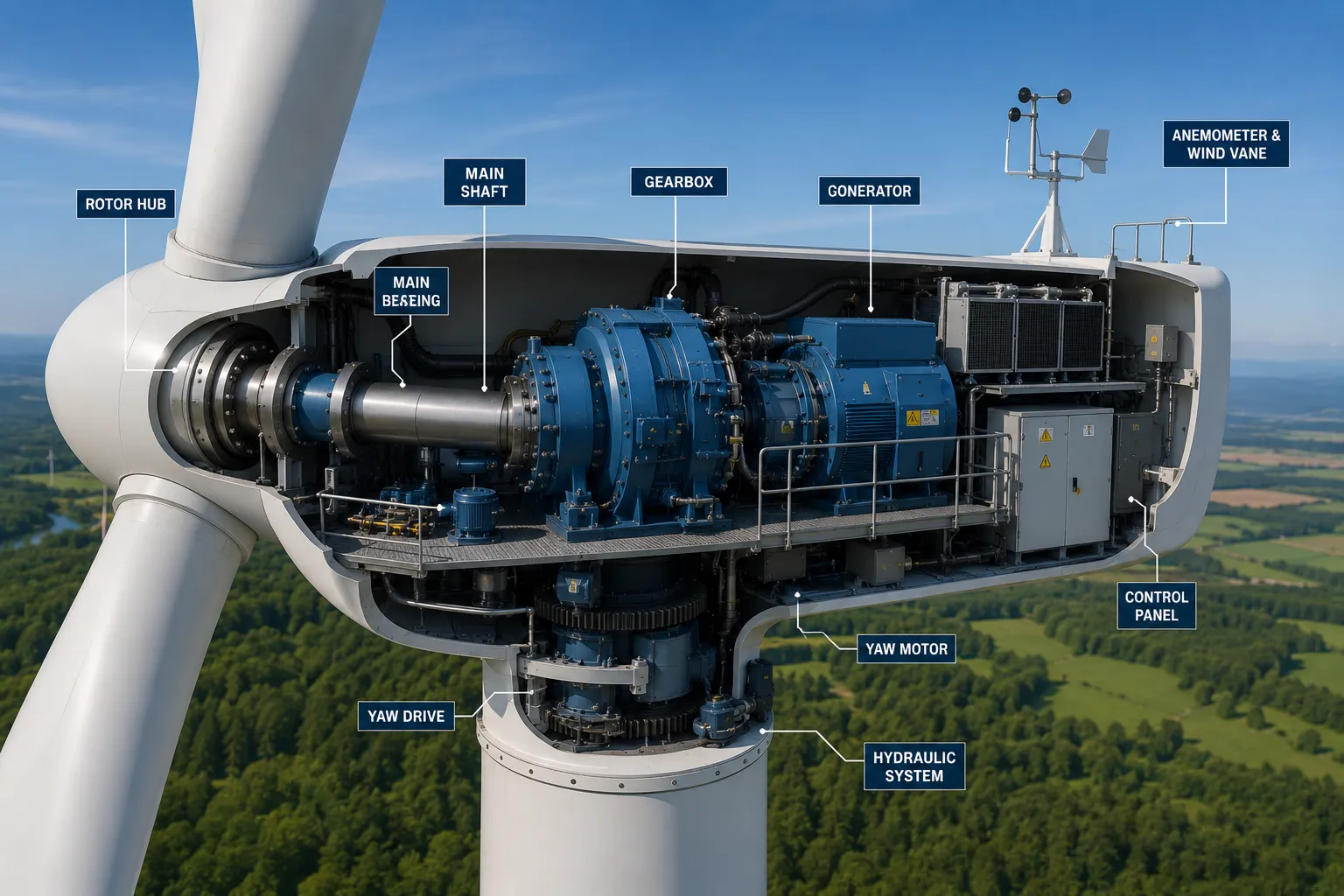

WIND TURBINE
Clean Energy
Wind turbine and wind farm solutions for clean-energy generation and hybrid power projects.
- Wind turbine integration
- Clean energy applications
- Hybrid solar and wind solutions
- Project-based engineering support
Product Images
TECHNICAL DATA
Wind Turbine Data
ApplicationWind turbine and wind farm projects
IntegrationHybrid clean energy power solutions
SupportEngineering-led project configuration
Related scopeSolar and wind generator systems
HYDRO GENERATORS
Clean Energy
Hydro generator solutions for water-driven power projects and renewable energy applications.
- Hydro generator assemblies
- Renewable energy applications
- Project-based equipment supply
- Suitable for clean energy infrastructure
Product Images
TECHNICAL DATA
Hydro Generator Data
ApplicationHydro power generation
ScopeTurbine generator equipment and project support
Power typeRenewable / clean energy
EngineeringConfigured around site conditions

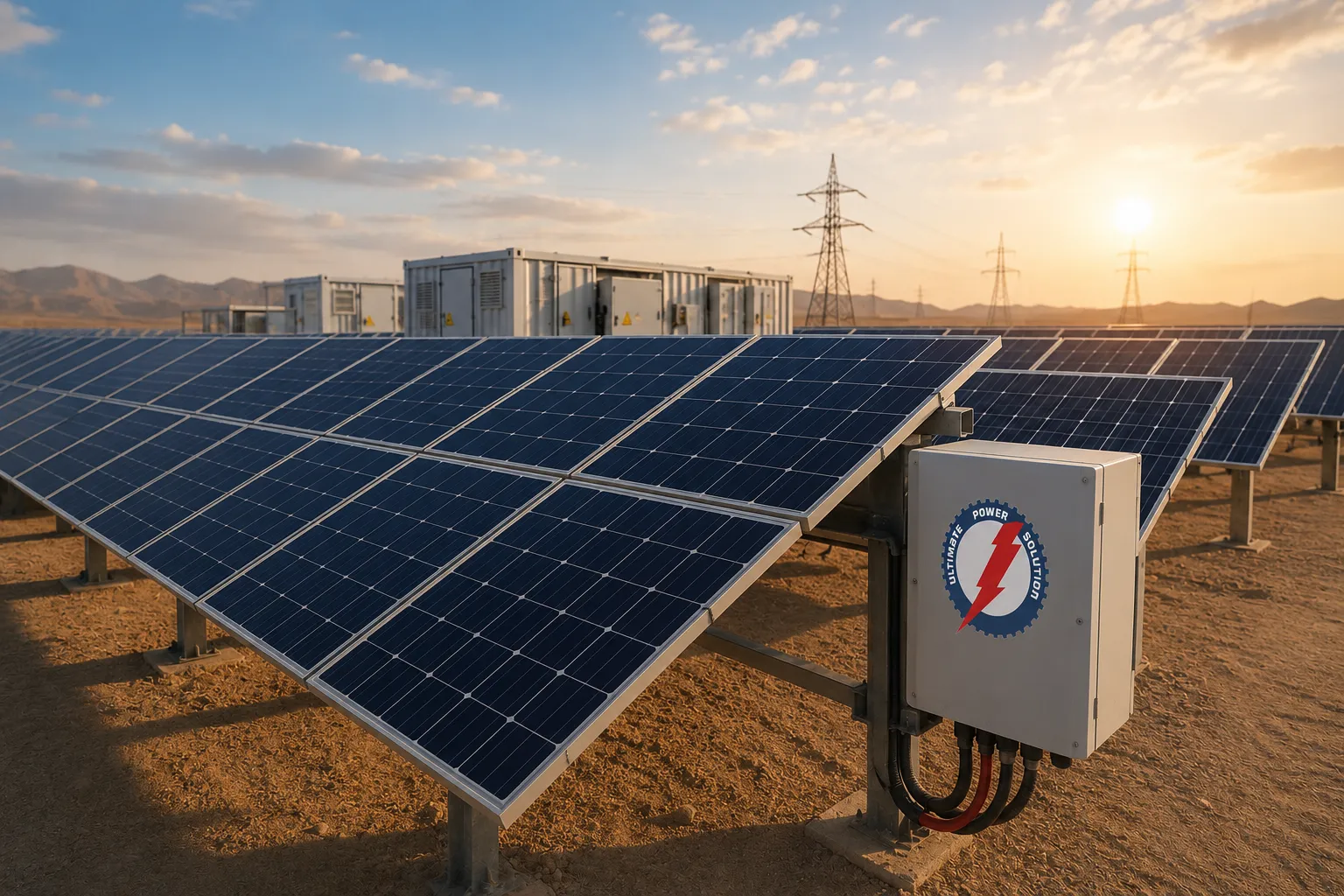

SOLAR POWER STATION
Clean Energy
Solar power stations and combined solar/wind generator solutions for clean power applications.
- Solar power station projects
- Solar + wind generator solutions
- Clean power provider capability
- Hybrid project applications
Product Images
TECHNICAL DATA
Solar Power Station Data
ApplicationSolar power station and clean energy projects
IntegrationSolar, wind and hybrid power systems
Project examplesSolar fields, rooftop and industrial installations
SupportEngineering, supply and system integration
TOWER LIGHT – PERKINS
Lighting Tower
Perkins-powered lighting tower solutions for industrial, site and rental operations.
- Manual operation options
- 4 × 1000W metal halide lights
- Water-cooled diesel engine
- Towable site lighting solution
Product Images
TECHNICAL DATA
TECHNICAL DATA
Lighting Tower Technical Data – Perkins
UPS Mobile Lighting Tower Specification.
| Specification | UPS-MLT15 | UPS-MLT20 |
|---|---|---|
| Product Model | UPS-MLT15 | UPS-MLT20 |
| Length (mm) | 2430 (1530 - Dismantle the tow bar) | |
| Width (mm) | 1302 | |
| Height (mm) | 2597 | |
| Weight (Kg) (NET) | 1150 | |
| Engine Brand | PERKINS | |
| Engine Model | 403A-15G1 | 404A-22G1 |
| Frequency (Hz) | 50 | 50 |
| Speed (rpm) | 1500 | 1500 |
| Prime Power / Standby Power (kVA) | 13 / 15 | 20.3 / 22.3 |
| Number of Cylinder | 4 | |
| Diesel Engine Characters | Water cooled diesel engine | |
| Cylinder Bore (mm) | 84 × 90 | |
| Combustion System | Indirect Injection | |
| Compression Ratio | 22.5 : 1 | 23.3 : 1 |
| Alternator Brand | Leroy Somer / Meccalte / UPS / Stamford | |
| Insulation / Alternator Type | Class H / Brushless | |
| Rating | 380 / 220 | |
| Fuel Consumption (Prime Power) | 3.7 L/hr | 5.3 L/hr |
| Type of Lights | Metal Halide Floodlights | |
| Number & Power of Lights | 4 × 1000W | |
| Mast Lifting & Extension | Manual Operation | |
| Mast Rotation | 390° Manual Operation | |
| Light Up/Down Turning | Manual Operation | |
| Base Support | Manual Operation | |
| Trailer Suspension System | Torsion Axle (AL-KO) | |
| Braking System | Inertia drum brake with stable towing height, Parking brake | |
| Hitch | Draw eye / Towing Hook | |
| Tire and Rim Size | 185 / 14" | |
| Acoustic Pressure | 65 dB(A) @ 7 meters away | |
TOWER LIGHT – LISTER PETTER
Lighting Tower
Lister Petter-powered lighting tower systems for job sites, rental fleets and emergency lighting.
- Lister Petter diesel engine
- Manual / hydraulic mast options
- Metal halide floodlights
- Stable towable chassis
Product Images
TECHNICAL DATA
TECHNICAL DATA
Lighting Tower Technical Data – Lister Petter
UPS Mobile Lighting Tower – Lister Petter Specification.
| Specification | 50Hz | 60Hz | ||
|---|---|---|---|---|
| Product Model | UPS-MLT8 | |||
| Length (mm) | 2784 (2260 - Dismantle the tow bar) | |||
| Width (mm) | 1360 | |||
| Height (mm) | 2170 | |||
| Mast Height (Fully extended) | 9m | |||
| Weight (Kg)(NET) | 1150 | |||
| Engine Brand | LISTER PETTER | |||
| Engine Model | D1105 | |||
| Frequency (Hz) | 50 | 60 | ||
| Speed (rpm) | 1500 | 1800 | ||
| Continued Power (kVA) | 7 | 9 | 7 | 9 |
| Number of Cylinder | 3 | |||
| Diesel Engine Characters | Water cooled diesel engine | |||
| Combustion Type | Precombustion | Indirect Injection | ||
| Engine Aspiration | Natural | |||
| Emission Level | Stage 3 | Tier 4 | Stage 3 | Tier 4 |
| Alternator Brand | Meccalte | |||
| Alternator Model | LT 130 | |||
| Frequency (Hz) | 50 | 60 | 50 | 60 |
| Continued Power (kVA) | 6 | 7.5 | 6 | 7.5 |
| Alternator | Brushless and Single Phase | |||
| Rating (V) | 230 | |||
| Alternator Insulation | H | |||
| Fuel Tank Capacity | 135 Liters (35US Gallons) | |||
| Fuel Tank Operating Hours | 65 Hours | |||
| Type of Lights | Metal Halide Floodlights | |||
| Number & Power of Lights | 4 × 1000W | |||
| Mast Lifting & Extension | Hydraulic Operation | |||
| Mast Rotation | 359 degrees Manual Operation | |||
| Light up/down turning | Manual Operation | |||
| Base Support | Manual Operation | |||
| Trailer Suspension System | Torsion Axle ( AL - KO) | |||
| Braking System | Inertia drum braking with stable towing height, parking brake | |||
| Hitch | Draw Eye / Towing Hook | |||
| Tire & Rim Size | 185 / 14" | |||
| Acoustic Pressure | 65dB (A) @ 7 meters away | |||
| Load Capacity for 40' GP(Units) | 8 | |||
TOWER LIGHT – KUBOTA
Lighting Tower
Kubota-powered mobile lighting tower for reliable site lighting and compact deployment.
- Kubota diesel engine options
- Mobile lighting technical data
- 4 × 1000W light output
- Designed for site and rental operations
Product Images
TECHNICAL DATA
TECHNICAL DATA
Mobile Lighting Tower Technical Data – Kubota
UPS Mobile Lighting Tower – Kubota Specification.
| Specification | 50Hz | 60Hz |
|---|---|---|
| Product Model | UPS-MLT5 | |
| Length (mm) | 2430 (1530 - Dismantle the tow bar) | |
| Width (mm) | 1302 | |
| Height (mm) | 2597 | |
| Weight (Kg)(NET) | 1150 | |
| Engine Brand | KUBOTA | |
| Engine Model | Z482-BG | |
| Frequency (Hz) | 50 | 60 |
| Speed (rpm) | 1500 | 1800 |
| Continued Power (kW) | 5 | 6.9 |
| Standby Power (kW) | 6.21 | 7.5 |
| Number of Cylinder | 2 | |
| Type | Vertical, Water-cooled, 4 Cycle Diesel Engine | |
| Governor Regulation | Less than 5% | |
| Governor | Mechanical | |
| Fuel Injection Pump Type | Direct | |
| Compression Ratio | 23.5:1 | |
| Lubricating Oil Capacity | 2.5 (0.66US GAL) | |
| Alternator Brand | Linz | |
| Insulation / Alternator Type | Class H / Brushless | |
| Rating (V) | 380/220 | |
| Type of Lights | Metal Halide / Led Floodlights | |
| Number and Power of Lights | 4 × 1000W | |
| Mast Lifting & Extension | Manual Operation | |
| Mast Rotation | 390 Manual Operation | |
| Light up/down Turning | Manual Operation | |
| Base Support | Manual Operation | |
| Trailer Suspension System | Torsion Axle (AL-KO) | |
| Braking System | Inertia drum brake with stable towing height, Parking brake | |
| Hitch | Draw eye / Towing Hook | |
| Tire and Rim Size | 185/14" | |
| Acoustic Pressure | 65 dB (A) @ 7 meters away | |
Need a custom power solution for your next project?
From requirement to reliable operation, UPS Generator provides engineered power solutions for industrial projects,
contractors, consultants and facility operators.
contractors, consultants and facility operators.
